UPnP 2025 - Continuation of the original UPnP/DLNA plugin

[BoringName]

Hi, I saved the debug log is requested. I also have problems with the new 2025 plugin. It's too long, How can I send it as an attachment? Thanks

As I said, can you post in the dedicated plugin thread - https://getmusicbee.com/forum/index.php?topic=42468.75

As for the log, you either need to upload it to a file server eg) mediafire, google drive etc... and provide a link or a better options would be to clear it out.  Click "view" to show the log. Push Ctrl+A to highlight everything then hit the delete key. Then close and save it. Perform the action that's not working correctly. View the log again. There shouldn't be a lot in there and you should be able to just copy paste the lot.

But do it in the dedicated plugin thread, if you post more crap in here I'm not responding.

[Arylic67]

Hi, as requested link of the log file. Thanks

https://drive.google.com/file/d/1aEG5fpjxBIcFUS5yyKVCU5tw5LZIus_0/view?usp=drive_link

[Arylic67]

Ok I send the link of google drive. Please tell me if you can open it. Thanks

Hi, I saved the debug log is requested. I also have problems with the new 2025 plugin. It's too long, How can I send it as an attachment? Thanks

As I said, can you post in the dedicated plugin thread - https://getmusicbee.com/forum/index.php?topic=42468.75

As for the log, you either need to upload it to a file server eg) mediafire, google drive etc... and provide a link or a better options would be to clear it out.  Click "view" to show the log. Push Ctrl+A to highlight everything then hit the delete key. Then close and save it. Perform the action that's not working correctly. View the log again. There shouldn't be a lot in there and you should be able to just copy paste the lot.

But do it in the dedicated plugin thread, if you post more crap in here I'm not responding.

[BoringName]

Mate....

I said to post it in this thread not create a whole new one
https://getmusicbee.com/forum/index.php?topic=42468.75

I'll take a look at the log and reply in that thread.

edit: I Can't access the link. Just copy paste the last 50 lines of the log IN THE OTHER THREAD.

[Arylic67]

Hi, last 50... thanks

3; 1 Initialise - 11/02/2025 10:25:03
516; 2 GetNetworkAddresses - 172.17.16.1,dns=True,name=vEthernet (Default Switch),speed=10000000000
516; 3 GetNetworkAddresses - 192.168.1.146,dns=True,name=Ethernet,speed=1000000000
517; 4 GetNetworkAddresses - 127.0.0.1,dns=False,name=Loopback Pseudo-Interface 1,speed=1073741824
517; 5 GetNetworkAddresses - http://192.168.1.146:49382
652; 6 ProcessMessage 192.168.1.103 - device 'uuid:FF31F09E-D100-5E49-48BD-4ED3FF31F09E:SoundSystem_C7E6',valid=True
657; 7 Profile - Generic Device, useragent=|Linux/2.6.36+
659; 8 Profile - Generic Device, useragent=|Linux/2.6.36+
871; 9 Activate - SoundSystem_C7E6:http-get:*:audio/wav:DLNA.ORG_PN=LPCM,http-get:*:audio/x-wav:DLNA.ORG_PN=LPCM,http-get:*:audio/mpeg:DLNA.ORG_PN=MP3,http-get:*:audio/mpeg:DLNA.ORG_PN=MP3X,http-get:*:audio/x-ms-wma:DLNA.ORG_PN=WMABASE,http-get:*:audio/x-ms-wma:DLNA.ORG_PN=WMAFULL,http-get:*:audio/x-ms-wma:DLNA.ORG_PN=WMAPRO,http-get:*:audio/mpeg:DLNA.ORG_PN=MP2_MPS,http-get:*:audio/mp3:*,http-get:*:audio/wma:*,http-get:*:audio/mpeg:*,http-get:*:audio/vnd.dlna.adts:DLNA.ORG_PN=AAC_ADTS,http-get:*:audio/vnd.dlna.adts:DLNA.ORG_PN=AAC_ADTS_320,http-get:*:audio/m4a:DLNA.ORG_PN=AAC_ISO,http-get:*:audio/aac:DLNA.ORG_PN=AAC_ISO,http-get:*:audio/ac3:DLNA.ORG_PN=AC3,http-get:*:audio/ogg:*,http-get:*:audio/ape:*,http-get:*:audio/x-ape:*,http-get:*:audio/flac:*
7859; 10 Play - D:\MUSICA FLAC\0 - FLAC HI-RES\Dire Straits - Brothers in Arms (1985) [VINYL] {24-192 kHz, UK Vertigo VERH 25}\01 - So Far Away.flac (http://192.168.1.146:49382/encode/3BA1B2231C952B88-2147483643.wav)
9643; 11 StateTimer - Loading,old=Stopped
11056; 12 Profile - Generic Device, useragent=Lavf/58.45.100
11179; 13 Profile - Generic Device, useragent=Lavf/58.45.100
11182; 14 GetEncodedFile[1] 192.168.1.146 - GET D:\MUSICA FLAC\0 - FLAC HI-RES\Dire Straits - Brothers in Arms (1985) [VINYL] {24-192 kHz, UK Vertigo VERH 25}\01 - So Far Away.flac to 192.168.1.103; mime=audio/wav,rate=48000,channels=2
12158; 15 StateTimer - Playing,old=Loading
239928; 16 GetEncodedFile[1] - exit=0, playtime=228744
255931; 17 StateTimer - Stopped,old=Playing
256586; 18 Play - D:\MUSICA FLAC\0 - FLAC HI-RES\Dire Straits - Brothers in Arms (1985) [VINYL] {24-192 kHz, UK Vertigo VERH 25}\02 - Money For Nothing.flac (http://192.168.1.146:49382/encode/4115B5D14EF4993A-2147483636.wav)
256820; 19 Profile - Generic Device, useragent=Lavf/58.45.100
256821; 20 Profile - Generic Device, useragent=Lavf/58.45.100
256821; 21 GetEncodedFile[2] 192.168.1.146 - GET D:\MUSICA FLAC\0 - FLAC HI-RES\Dire Straits - Brothers in Arms (1985) [VINYL] {24-192 kHz, UK Vertigo VERH 25}\02 - Money For Nothing.flac to 192.168.1.103; mime=audio/wav,rate=48000,channels=2
257270; 22 StateTimer - Loading,old=Stopped
257770; 23 StateTimer - Playing,old=Loading
651291; 24 GetEncodedFile[2] - exit=0, playtime=394469
651308; 25 Profile - Generic Device, useragent=Lavf/58.45.100
651312; 26 Profile - Generic Device, useragent=Lavf/58.45.100
651315; 27 GetEncodedFile[3] - range=bytes 75550732-81084331/81084332
651315; 28 GetEncodedFile[3] 192.168.1.146 - GET D:\MUSICA FLAC\0 - FLAC HI-RES\Dire Straits - Brothers in Arms (1985) [VINYL] {24-192 kHz, UK Vertigo VERH 25}\02 - Money For Nothing.flac to 192.168.1.103; mime=audio/wav,rate=48000,channels=2
686261; 29 StateTimer - Stopped,old=Playing
686892; 30 Play - D:\MUSICA FLAC\0 - FLAC HI-RES\Dire Straits - Brothers in Arms (1985) [VINYL] {24-192 kHz, UK Vertigo VERH 25}\03 - Walk Of Life.flac (http://192.168.1.146:49382/encode/F72AF2587F95F553-2147483622.wav)
687433; 31 Profile - Generic Device, useragent=Lavf/58.45.100
687434; 32 Profile - Generic Device, useragent=Lavf/58.45.100
687434; 33 GetEncodedFile[4] 192.168.1.146 - GET D:\MUSICA FLAC\0 - FLAC HI-RES\Dire Straits - Brothers in Arms (1985) [VINYL] {24-192 kHz, UK Vertigo VERH 25}\03 - Walk Of Life.flac to 192.168.1.103; mime=audio/wav,rate=48000,channels=2
687714; 34 StateTimer - Loading,old=Stopped
688662; 35 StateTimer - Playing,old=Loading
695253; 36 GetEncodedFile[3] - exit=0, playtime=43936
924968; 37 GetEncodedFile[4] - exit=0, playtime=237534
940204; 38 StateTimer - Stopped,old=Playing
940849; 39 Play - D:\MUSICA FLAC\0 - FLAC HI-RES\Dire Straits - Brothers in Arms (1985) [VINYL] {24-192 kHz, UK Vertigo VERH 25}\04 - Your Latest Trick.flac (http://192.168.1.146:49382/encode/6DADC14C9CFAE1E7-2147483615.wav)
941123; 40 Profile - Generic Device, useragent=Lavf/58.45.100
941123; 41 Profile - Generic Device, useragent=Lavf/58.45.100
941123; 42 GetEncodedFile[5] 192.168.1.146 - GET D:\MUSICA FLAC\0 - FLAC HI-RES\Dire Straits - Brothers in Arms (1985) [VINYL] {24-192 kHz, UK Vertigo VERH 25}\04 - Your Latest Trick.flac to 192.168.1.103; mime=audio/wav,rate=48000,channels=2
941574; 43 StateTimer - Loading,old=Stopped
942069; 44 StateTimer - Playing,old=Loading

[Arylic67]

I send you the entire log (44 lines). Thanks

Mate....

I said to post it in this thread not create a whole new one
https://getmusicbee.com/forum/index.php?topic=42468.75

I'll take a look at the log and reply in that thread.

edit: I Can't access the link. Just copy paste the last 50 lines of the log IN THE OTHER THREAD.

[BoringName]

Hi, last 50... thanks

Your device is currently using the generic  profile. We need to setup a streaming profile so the plugin knows what it can send to your device.

What device are you sending the music to? Brand and model would be good so I can look up it's capabilities. You're trying to send flac songs to it and it does support flac but the sample rate might be an issue.

[BoringName]

Actually it probably doesn't matter, we can adjust the settings later.

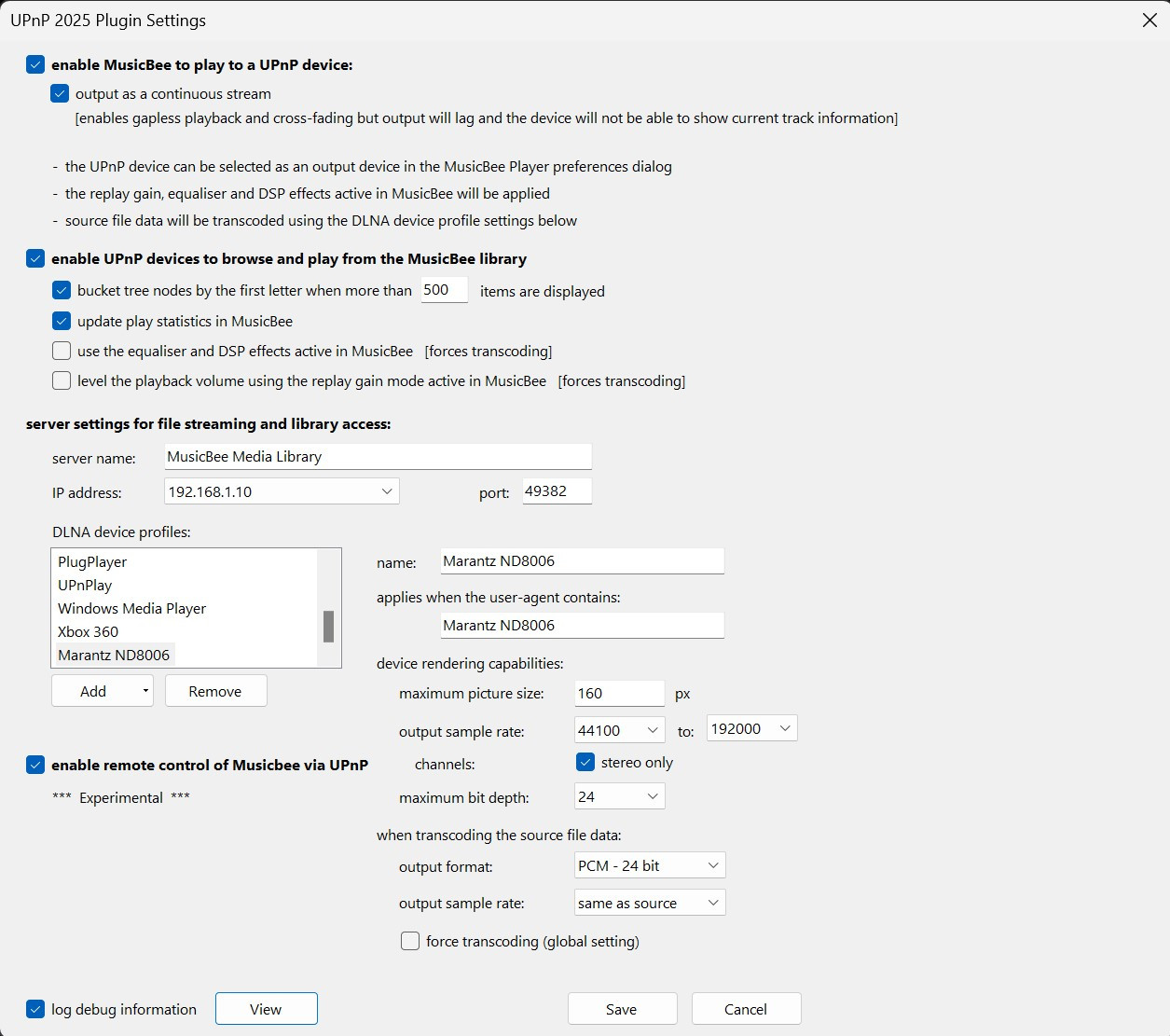

So on the config page
Click the "Add" button under the list of DLNA profiles.
In the "name" box where it says "New Profile". Change this to the name of your device.
In the box under this where it says to enter a user agent. Enter in "Linux" without the quotes.
Leave max picture size at 160
Set the output sample rate to 44100 to 192000
Untick the stereo only checkbox.
Set maximum bit depth to 24
Set output format to PCM 24 bit
Set output sample rate to "same as source".
Untick force trancoding.

Click save. Close musicbee completely and open it again.

Try and play a song again. If there are still issues paste the last 50 lines of the log in here again.

edit: Also you might want to edit that post of the log and just remove the "getnetworkaddresses"  entries at the top as I think it contains your external IP. Make sure not to include those entries if you paste the log again.

[Arylic67]

Hi, My device is Arylic S50 Pro+
Should I make the changes you told me or should I wait for your reply? Thanks

Hi, last 50... thanks

Your device is currently using the generic  profile. We need to setup a streaming profile so the plugin knows what it can send to your device.

What device are you sending the music to? Brand and model would be good so I can look up it's capabilities. You're trying to send flac songs to it and it does support flac but the sample rate might be an issue.

[BoringName]

Hi, My device is Arylic S50 Pro+

Yes, put those settings in.

FYI, you're not doing the audiophile thing correctly. If you're going to fork out for Hi Res flac, you need a better device to play it through to complete the delusion.

From the website, that device can decode 24bit/192kHz but it only outputs 44.1khz/16 bit (CD quality) /the horror.

[Arylic67]

CD quality is enough for me.... thanks for everything, sorry for the confusion of the posts. If anything I'll let you know....
ps: why name Linux, can I change it with another?

Hi, My device is Arylic S50 Pro+

Yes, put those settings in.

FYI, you're not doing the audiophile thing correctly. If you're going to fork out for Hi Res flac, you need a better device to play it through to complete the delusion.

From the website, that device can decode 24bit/192kHz but it only outputs 44.1khz/16 bit (CD quality) /the horror.

[jean.valjean]

Hello,
can you tell me if this works for you without checking “ouput as a continuous stream”?
If I launch a flac file directly from Musibee, can I hear it on the device and see the flac information and not pcm.
The plugin works well in other cases for flac files.
Win11Marantz ND8006 wired.
Thank you for your work.
Have a nice day!

[BoringName]

ps: why name Linux, can I change it with another?

Why would you want to change it? You can put whatever you want in the "name" field to identify what the profile is. The useragent field has to match what your device is using, at least partially.

Your devices useragent is Linux/2.6.36+

This is the identifier it uses for UPnP. It's how the plugin knows which profile to use for the device.

[BoringName]

Hello,

I'm probably going to sound like a prick because maybe it's a language barrier thing, but you people need to read back what you have written before you click post to make sure someone else reading it knows what you are talking about.

can you tell me if this works for you without checking “ouput as a continuous stream”?

Yes. I can send a flac file to BubbleUPnP without it being transcoded and doesn't require continuous stream to be checked.

If I launch a flac file directly from Musibee, can I hear it on the device and see the flac information and not pcm.

I don't know how well you can see or hear but I can hear it on BubbleUPnP and see the track information listed as Flac , not PCM.

The plugin works well in other cases for flac files.

What other cases?

Win11Marantz ND8006 wired.

Have you setup a profile for this device, if you read back a few posts you can see how I instructed another user how to do that. If you are not sure what the useragent is to use, just follow the instructions about posting the debug log. Make sure to remove the "GetNetworkaddresses" entries.

[jean.valjean]

Good evening,

I wanted to know if MusicBee and the plugin worked without BubbleUPnP.
I choose a song in MusicBee, press play and listen on my speakers through the Marantz with the name displayed as well as the type and format. (It doesn't work, all I get is noise).
If I check the “continuous stream” box, I don't have this information except for PCM, but I can hear the music.
The plugin works well when I use the remote control on my device to fetch the files from my PC's disk, I get the sound and the information.
I do have an ND8006 output for listening on the hi-fi system.



Translated with DeepL.com (free version)
